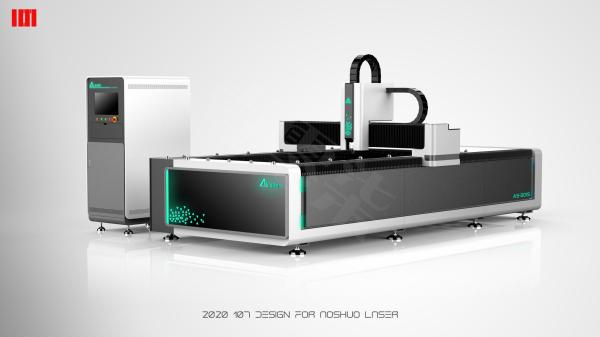

Customized Voltage 10m/min Fiber Laser Cutting Machine
Features:
- The integrated casting machine body is featured with rigidity, stability and anti-shocking property.It’s done by annealing, roughing and aging treatment which release stress during welding and processing. Fabricated with perfect cooling, lubrication and dust-removal system to ensure stable, efficient and endurable operation.
- Gantry is casting aviation aluminum. High density, low weight and good rigidity is reliable guarantee for high speed running
- IPG fiber laser source equipped
- Imported high precision ball screw transmission and high precision linear guide rail
- Japanese servo motor and driver system, imported high-rigidly precision gearbox
- Professional cutting software, easy and convenient to operate.
Advantage of the Fiber Laser Cutting Machine:
–The machine has lowest cost and lowest cost of power. The machine can cut all kinds of metal with air.
–The machine has quick cutting speed.
–Because of the good light beam, the product has the small deformation; the appearance of the product is flat and nice.
–With the imported servo motor and guiding transmission mechanism, the cutting accuracy is good
–Adopt the professional software, the machine can design all kinds of the graph or the written words at will, and process immediately. The operation is flexible, easy and convenient.
–Lowest cost Maintenance, No need the working gas for laser source; No need reflector for the optical fiber transmission; it can save much maintenance cost.
–It is easy to operate the machine. No need to adjust the light path with the optical fiber transmission.
|
project
|
parameter
|
unit
|
|
Processing size
|
(L)
|
3000
|
mm
|
|
|
(W)
|
1500
|
mm
|
|
X/Y axis positioning accuracy
|
±0.05
|
mm
|
|
X/Y axis repeatable positioning accuracy
|
±0.03
|
mm
|
|
X/Y maximum positioning speed
|
80
|
m/min
|
|
Laser generator power
|
1000
|
W
|
|
Cutting capacity: carbon steel plate
|
12
|
mm
|
|
stainless steel
|
6
|
mm
|
|
aluminum
|
4
|
mm
|
|
brass
|
3
|
mm
|
|
Maximum acceleration of X/Y
|
1.5
|
G
|
|
Motion stroke (axis)
|
X
|
3020
|
mm
|
|
|
Y
|
1520
|
mm
|
|
|
Z
|
150
|
mm
|
|
Number of phase
|
3
|
|
|
Power rating
|
380
|
V
|
|
frequency
|
50
|
Hz
|
Application Materials
Fiber Laser Cutting Equipment is suitable for metal cutting like stainless steel sheet, mild steel plate,carbon steel sheet, alloy steel plate, spring steel sheet, iron plate, galvanized iron, galvanized sheet, aluminum plate, copper sheet, brass sheet, bronze plate, gold plate, silver plate, titanium plate, metal sheet, metal plate, etc.
Application Industries
Kitchen appliances, sheet metal chassis, cabinets, mechanical equipment, electrical equipment, lighting hardware, advertising signs, auto parts, display equipment, many kind of metal product, metal sheet cutting etc
Product Tags:
|
|
80m/min 1064nm 1000w Fiber Laser Metal Cutting Machines Images
|
